Cockpit OpenShift

cockpit-openshift is a Cockpit plugin for guided OpenShift SNO and compact cluster deployment on one KVM/libvirt host. The plugin keeps host inputs, generated installer artifacts, VM plans, deployment status, and post-install inventory in one local operator surface.

Quick Start

RPM install

sudo dnf install -y rpm-build
cd /path/to/cockpit-openshift
./build-rpm.sh
sudo dnf install -y ./rpmbuild/RPMS/noarch/cockpit-openshift-0.1.0-1.el10.noarch.rpm

The exact RPM filename depends on the build host distribution suffix.

Source install

sudo mkdir -p /usr/share/cockpit/cockpit-openshift
sudo install -m 0644 src/cockpit-openshift/manifest.json /usr/share/cockpit/cockpit-openshift/
sudo install -m 0644 src/cockpit-openshift/index.html /usr/share/cockpit/cockpit-openshift/
sudo install -m 0644 src/cockpit-openshift/create.html /usr/share/cockpit/cockpit-openshift/
sudo install -m 0644 src/cockpit-openshift/overview.html /usr/share/cockpit/cockpit-openshift/
sudo install -m 0644 src/cockpit-openshift/cockpit-openshift.css /usr/share/cockpit/cockpit-openshift/
sudo install -m 0644 src/cockpit-openshift/cockpit-openshift.js /usr/share/cockpit/cockpit-openshift/
sudo install -m 0644 src/cockpit-openshift/cluster-list.js /usr/share/cockpit/cockpit-openshift/
sudo install -m 0644 src/cockpit-openshift/cluster-overview.js /usr/share/cockpit/cockpit-openshift/
sudo install -m 0755 src/cockpit-openshift/installer_backend.py /usr/share/cockpit/cockpit-openshift/

Use the source path when you are iterating on local plugin files.

Open Cockpit

sudo systemctl enable --now cockpit.socket

Open https://<host>:9090 and navigate to OpenShift.

Current Support

The validated path is intentionally narrow. Use the table to check whether the current workflow matches the host and topology you plan to run.

Area	Current path
Architecture	x86_64
Networking	static node networking
Topologies	SNO with one control-plane node, compact with three control-plane nodes
Storage pools	directory-backed and logical libvirt storage pools

DHCP is modeled in the UI, but it is not yet validated. Treat static node networking as the supported path until DHCP is proven end to end.

Install Model

Cockpit OpenShift is installed on the KVM/libvirt host that will run the local OpenShift workflow. The backend owns installer downloads, generated artifacts, libvirt VM creation, status tracking, and cluster inventory under /var/lib/cockpit-openshift/.

The operator provides the pull secret, SSH public key, DNS, VIPs, and node IPs. The UI redacts the pull secret in generated YAML previews.

Operator Screens

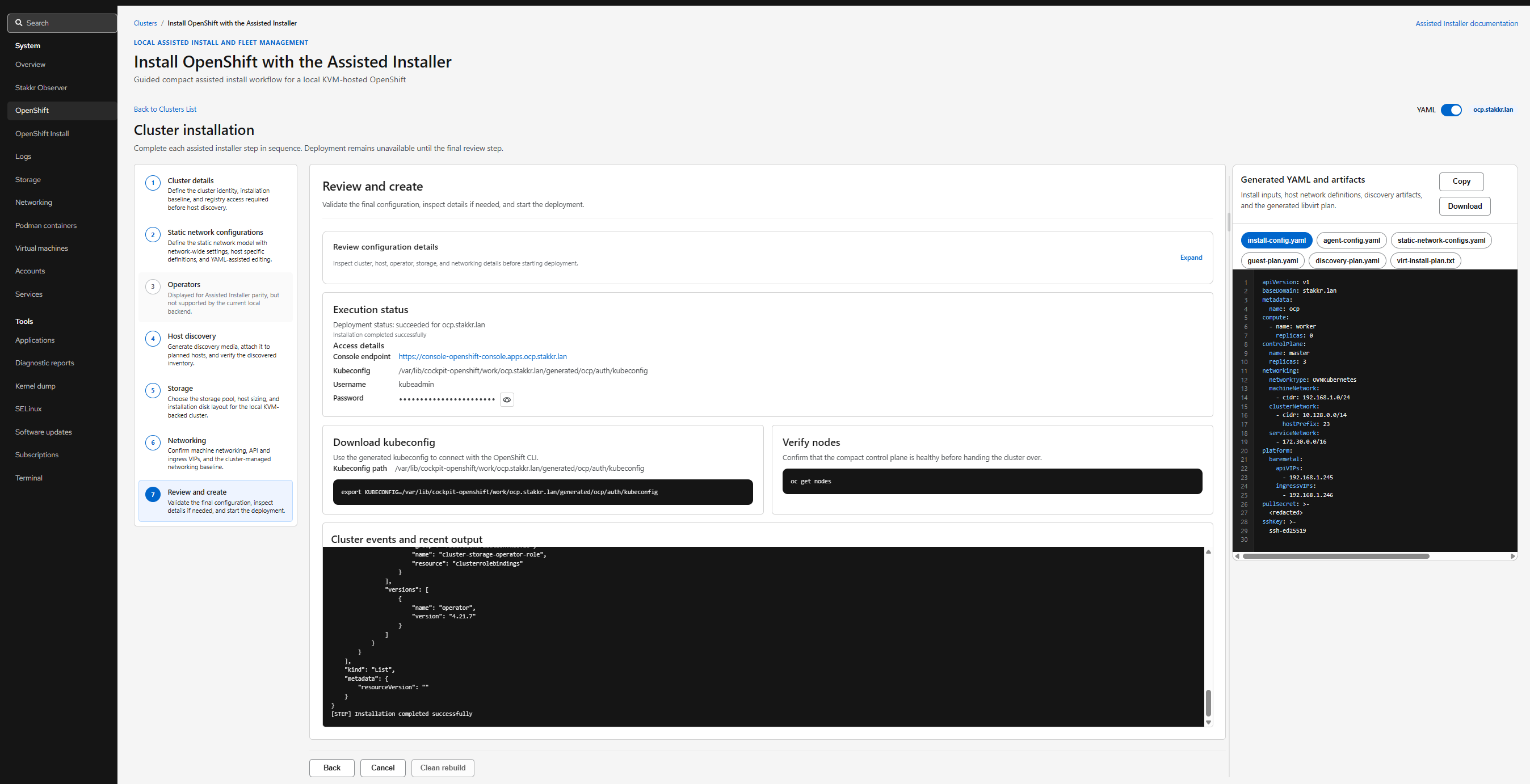

The create flow keeps cluster identity, networking, generated YAML, and deployment review in one workspace.

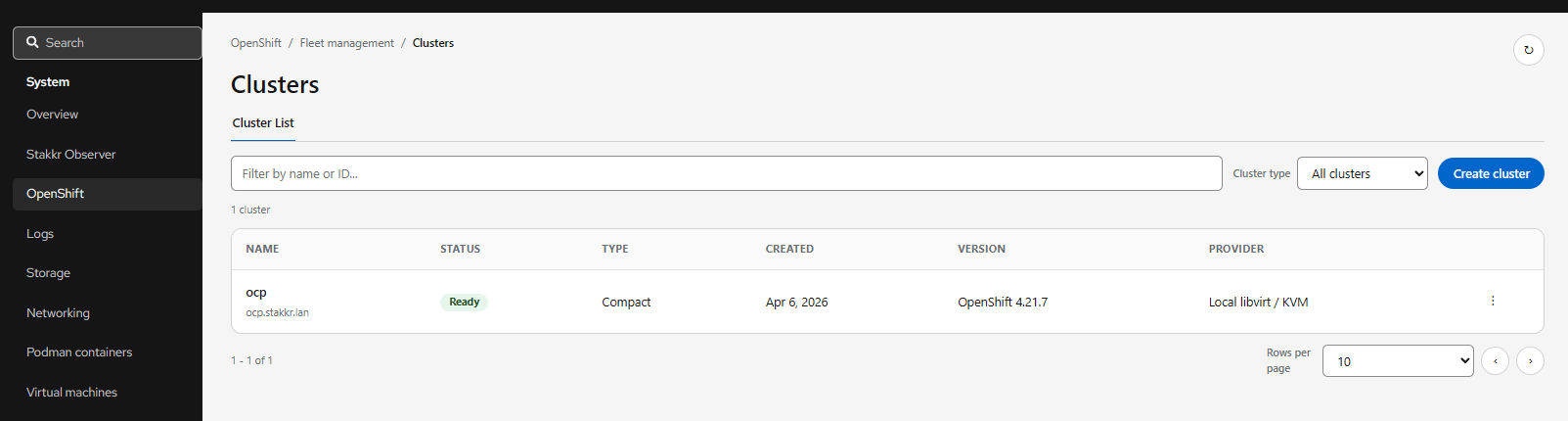

The fleet view keeps cluster inventory, cluster type, version, provider, and action routing visible after deployment.

First Workflow

SNO

1. Choose the single-node topology.
2. Provide cluster identity, pull secret, SSH key, DNS, API VIP, ingress VIP, and static node networking.
3. Review generated installer artifacts.
4. Deploy from the final review step.

Compact

1. Choose the three-control-plane topology.
2. Confirm host sizing, libvirt storage, bridge, node IPs, and VIPs.
3. Review the guest plan, discovery plan, static networking, and installer YAML.
4. Deploy from the final review step.

Review only

1. Stay in the create flow until artifact review.
2. Inspect install-config.yaml, agent-config.yaml, static-network-configs.yaml, and virt-install-plan.txt.
3. Deploy only after DNS, VIPs, node IPs, and guest sizing match the intended host plan.

Workflow Shape

The workflow keeps host preparation, guided input, artifact review, deployment, and post-install inventory in one local operator surface.

01

Prepare

Confirm Cockpit, libvirt, storage, DNS, pull secret, SSH key, node IPs, and VIPs.

Host and input model ready

02

Create

Choose SNO or compact topology, then enter cluster identity and static networking.

Cluster intent captured

03

Review

Inspect installer YAML, guest plan, discovery plan, and the generated virt-install plan.

Generated artifacts verified

04

Deploy

Launch from Cockpit, track status, return to inventory, reprovision, or destroy.

Cluster state tracked

Explore

Getting StartedInstall the plugin, open Cockpit, and run the first local workflow.CapabilitiesCheck supported topology, networking, storage, and backend boundaries.ExamplesUse practical checklists for SNO, compact, artifact review, and cleanup.ReferenceFind install commands, packaging details, runtime files, and source layout.

What The Plugin Covers

• guided OpenShift SNO deployment
• guided OpenShift compact deployment
• self-contained local backend for installer artifacts, libvirt storage, and domain creation
• rendered install-config.yaml, agent-config.yaml, guest plan, and virt-install plan review
• deployment status, recent output, and deployed-cluster inventory
• reprovision and destroy actions from the UI
